85.2.24 Playbox CG

This feature allow Stman to integrate with Playbox and send onair its graphic objects.

Macro configuration

1) Create a ctm with 3 parameters:

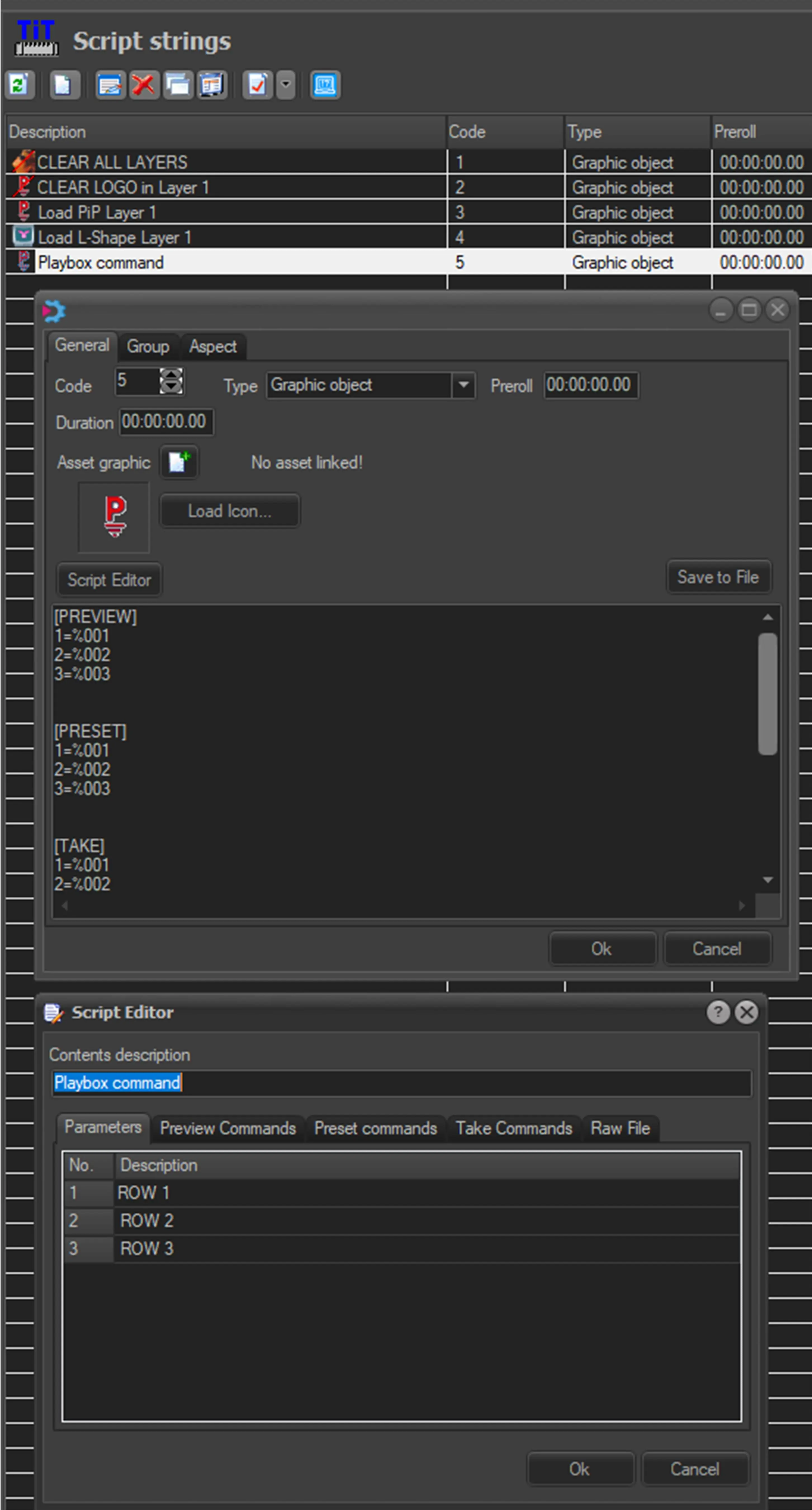

ctm_config

2) Create a macro with 2 secondary objects:
a. PLAY command after the event start
b. STOP command before the event end

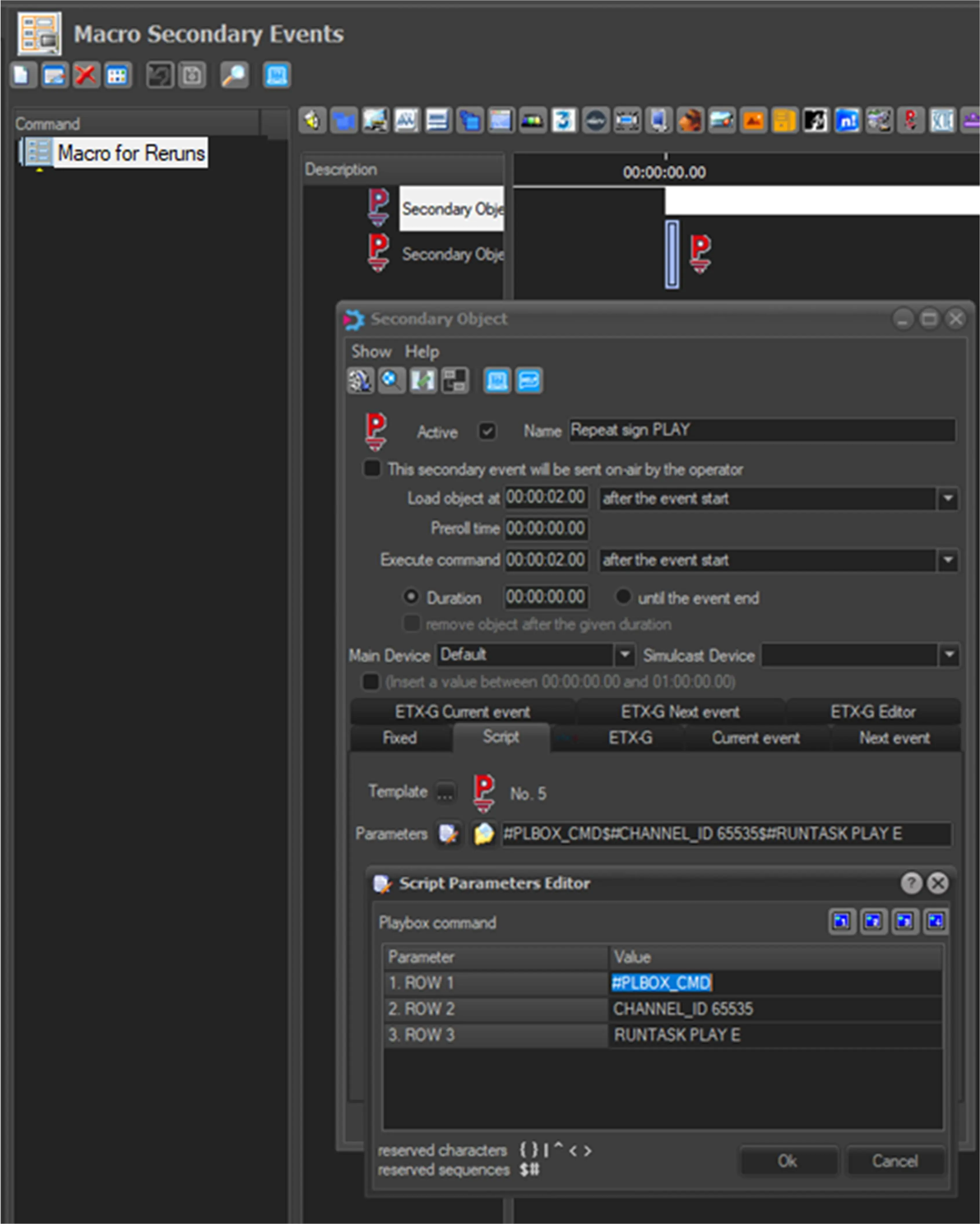

macro_play

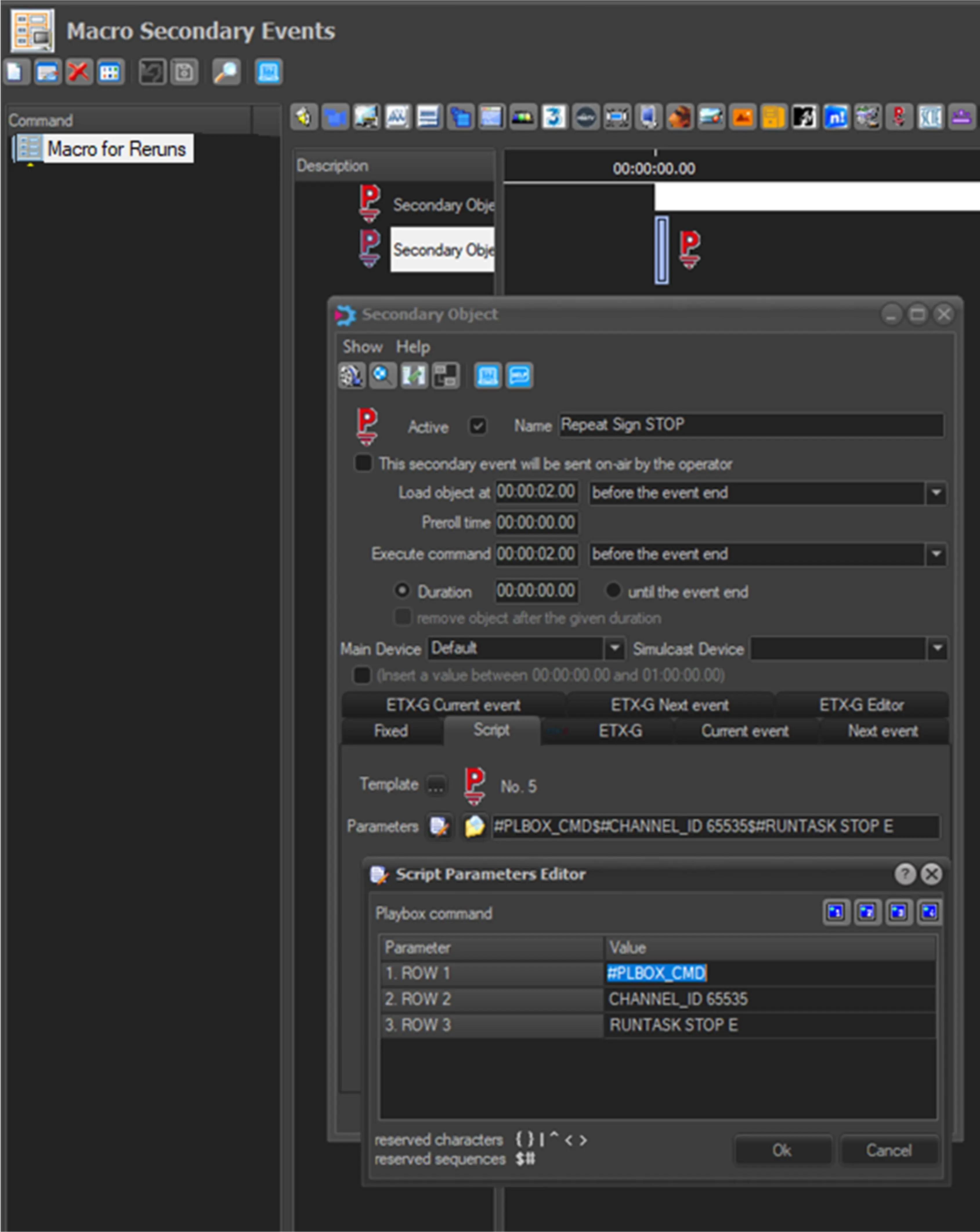

macro_stop

3)  Insert the macro in the following section

apply_macro_for_reruns

This macro will be applied when you publish the schedule or run the “Apply secondary events as a default” function.

The following property is required to apply the rule:

property

Age restriction configuration

1) In the Parental guidance you can assign a secondary object for each Parental Item.

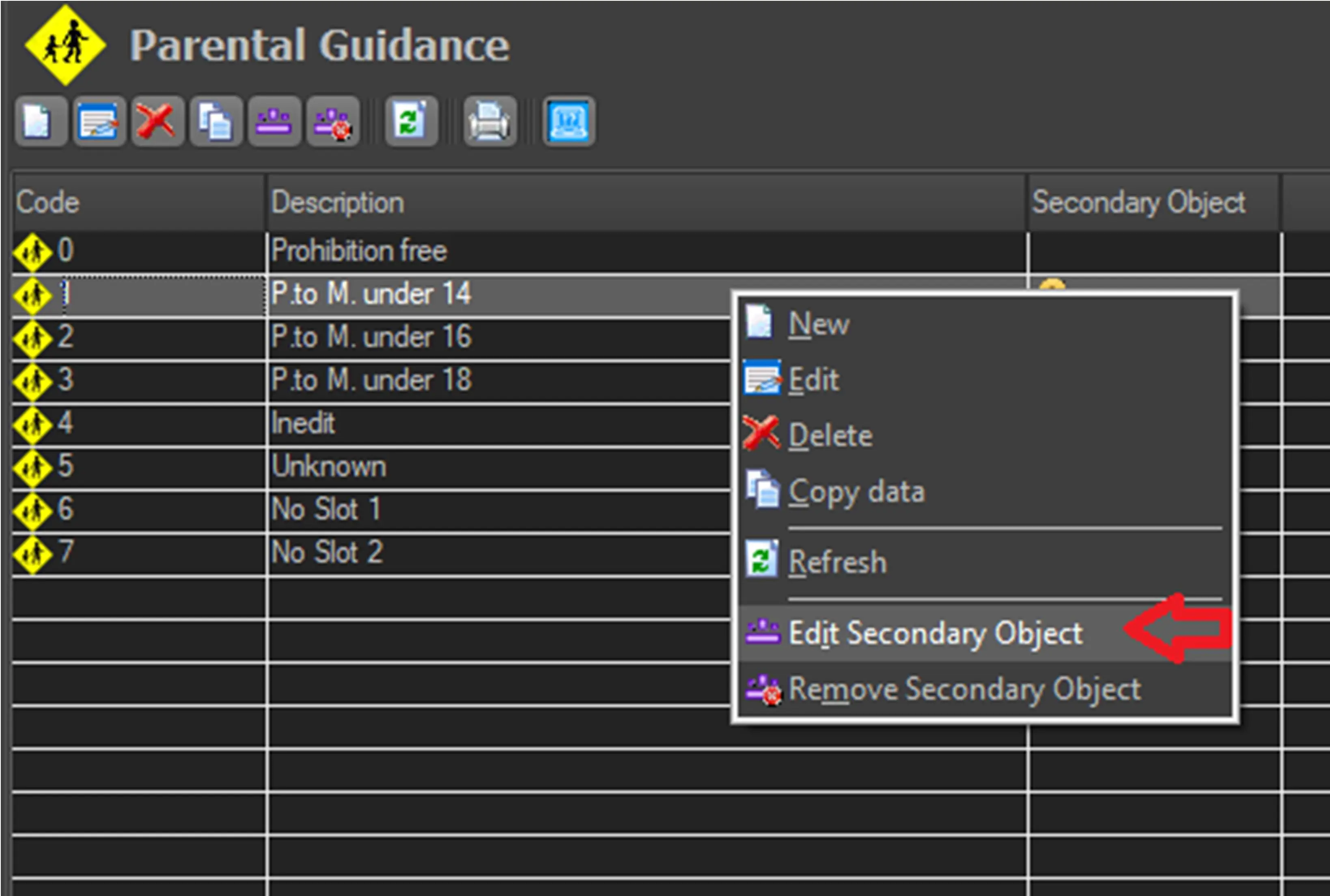

PG_secondary_object

This function will create a macro called “Parental Guidance “+Code.

2) In the “Macro Secondary Events” you can add the 2nd Secondary Object. Both can use the same ctm as the
reruns
a. PLAY command after the event start: RUNTASK PLAY Timerk, Timer12…
b. STOP command before the event end: RUNTASK STOP Timerk, Timer12…

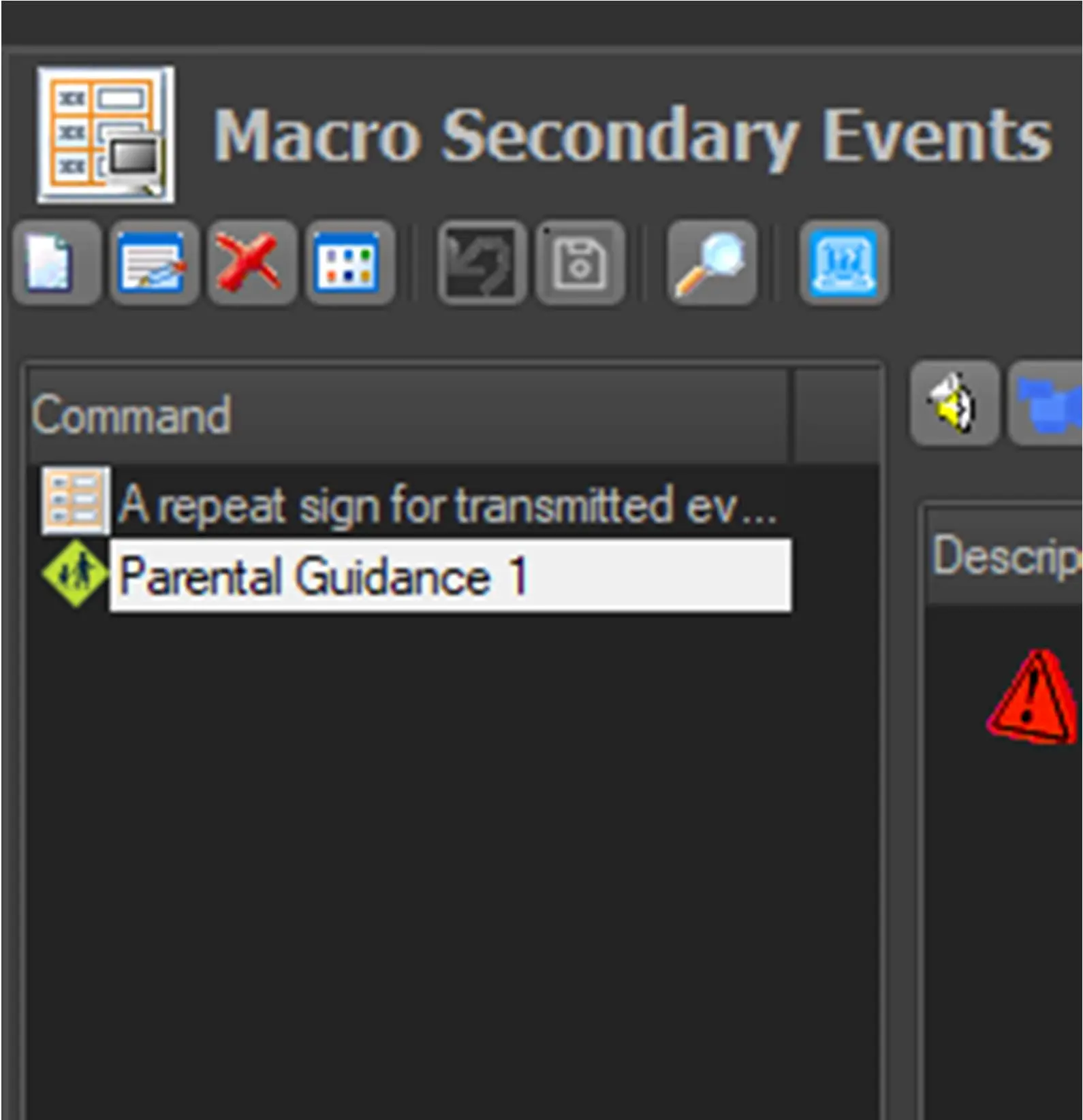

2nd_secondary_object

These macros will be applied when you publish the schedule or run the “Apply secondary events as a default” function.

Parameters

[il plugin non è stato ancora creato, vedere 316568]
