59.2.8.5 Toolbar functions

The toolbar provides the following functions for configuration of directories and report generation.
Toolbar function : Upgrade version
Description : Updates the release list from the source dir, the source directory contains all updated files for the release.

Toolbar function  - Refresh
Description : Updates the information displayed on various tabs (e.g. Etere PCs, Features, etc.).

Toolbar function  - Parameters
Description : Set the parameters for the current computer:
Source dir - The path from which the Etere setup would be launched in the current computer, and the directory where all updated files will be retrieved.
NB: This path is referred as EtereNetwork in the folder structure chapter.
Install dir - The directory where Etere module was installed in the current computer.
NB: This path is referred as Etere in the folder structure chapter.
PC list - Display all PCs or only PC which update is required.
PC files - Display all files or only those files that required to be updated.
Icons - Display small or big icons in the list (e.g. features by PC).
NB: The source dir and install dir are "read-only", parameters may change from computer to computer as they are set during the installation; they are stored  locally in the windows registry.

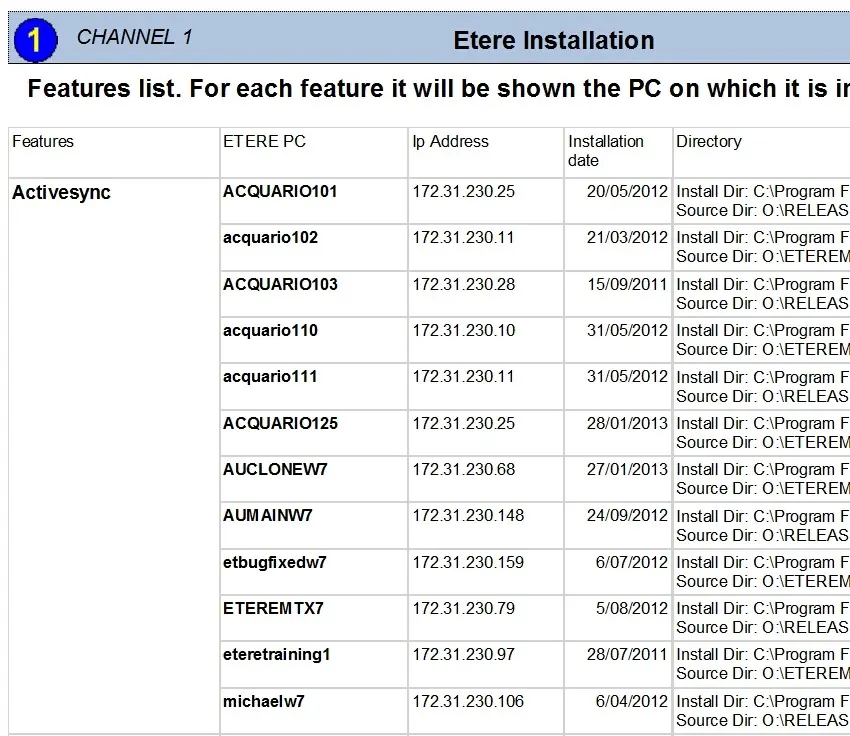

Toolbar function  - Features list
Description : Generates a report containing all features available for the Etere system, detailing the PCs where the features were installed:
features_list

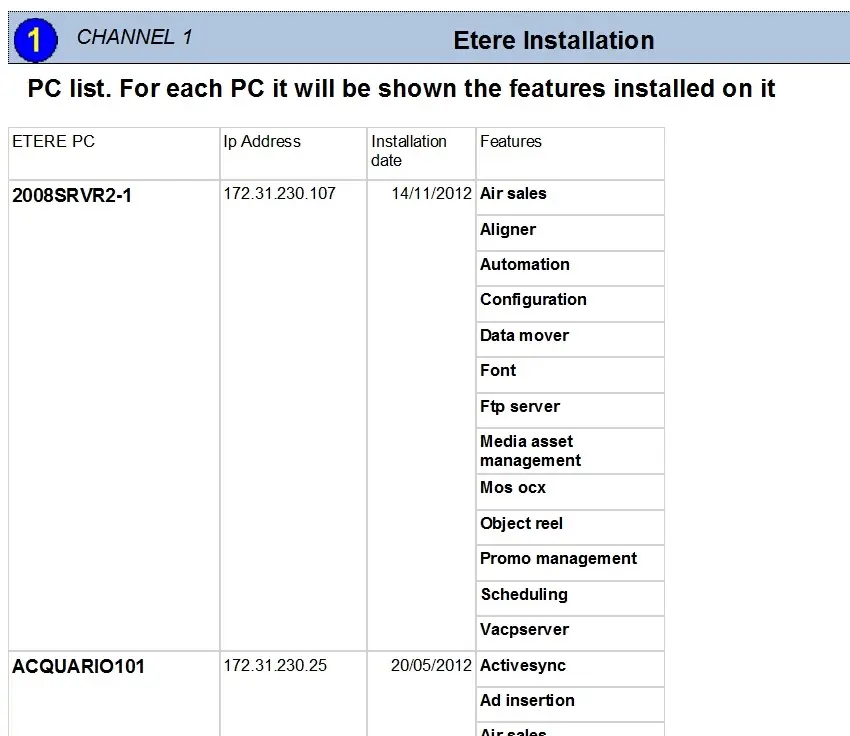

Toolbar function  - PC list
Description : Generates a report containing all PC in the Etere system, list all the features installed on each PC:
PC_list

Toolbar function  - Generate version file
Description : Create a file named "Version_[PCName].TXT", this file contain the version of all files present in the Etere installation of the selected PC. For instance:
Version_AuMainW7.TXT
_VACP_STATISTICS_1.SQL;0.0.0.0;223
_VACP_STATISTICS_2.SQL;0.0.0.0;43
adortl170.bpl;17.00.4625.53395;228288
aec_nttc.dll;05.00.02.02;65536
AUDIOLOG.DLL;03.01.00.00;185344
avcodec-55.dll;55.48.101.00;15180800
avdevice-55.dll;55.05.102.00;1182720
avfilter-4.dll;04.01.100.00;1694720
avformat-55.dll;55.23.103.00;5270016
AvidTMAutoAPI.dll;02.07.00.00;70144
Note: Only files with a specific extension are included (i.e. exe, dll, rpt, pcf, chm, ocx, dal).
