66.6 ETX-G Scenes Editor

In Scenes Editor, you can create new scene assets or modify existing assets in a similar way as described in Graphics Editor.  Before creation, an asset type property, "ETXS", must be defined in the "Type" properties.

• Add New Scene
  Simply click on the “New” menu to create a new scene.
  Etx-g_scenes_editor_new
  Name: Enter a name for the new scene object.
  Type: Select the asset type as “ETX Scenes”.  Only object types with ETX Scene and ETX Graphics would be listed.
  Codec: Select a supported codec “ETXS” as defined in Type properties.
  Click the <Ok> button to confirm the creation of the scene asset.

  Clicking the Live button on the right panel, it is possible to set the size of the first picture that would be added to the program.

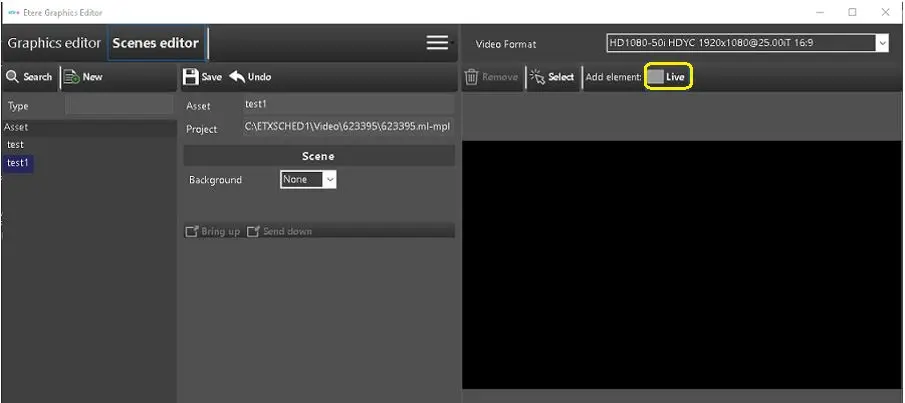

  Etx-g_graphics_scene_editor_set_live

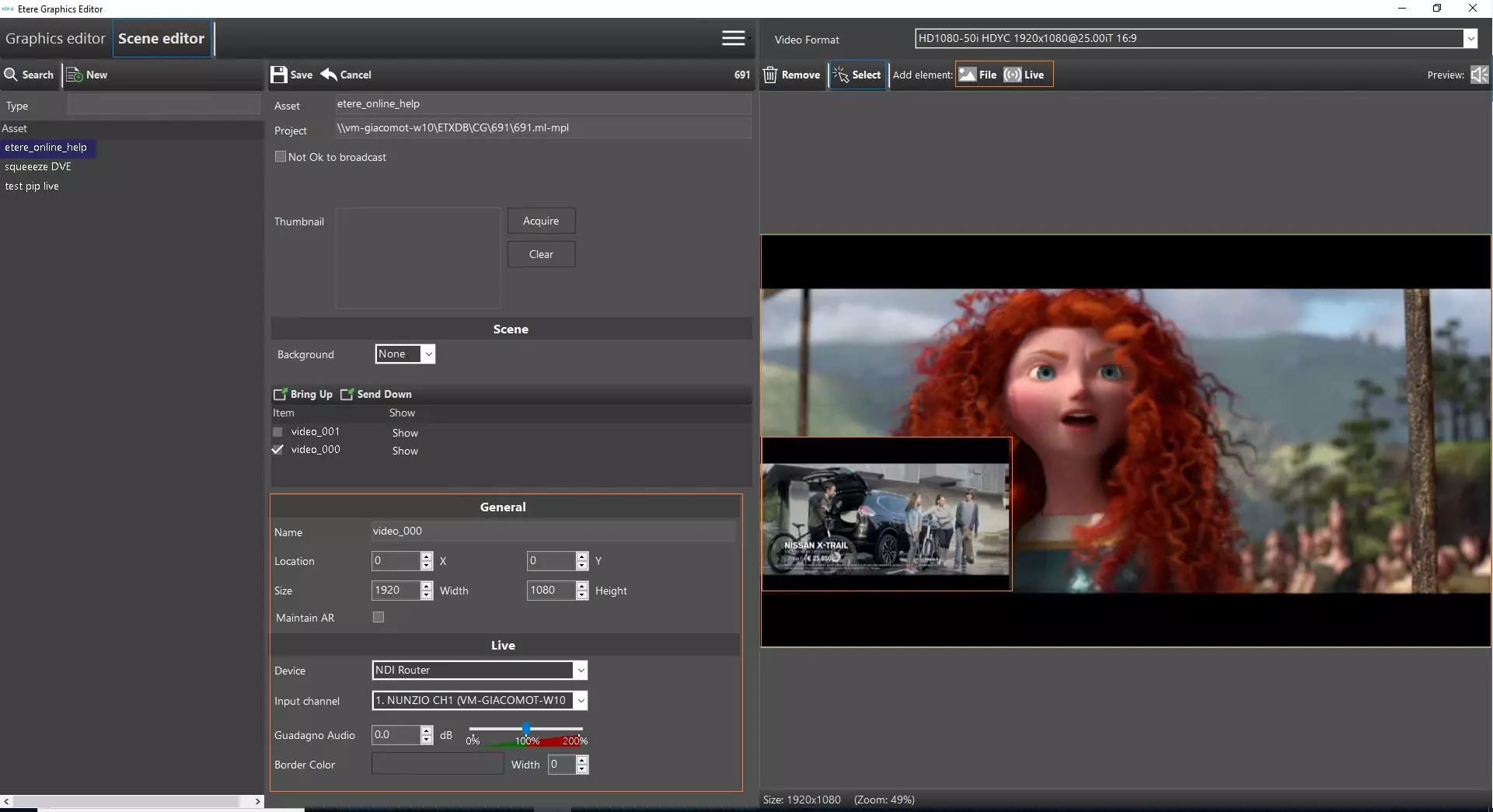

• In the General and Live section, set the display size and the position of the live window PiP, the Live Source and the Audio Level.
  Etx-g_graphics_scene_editor_general

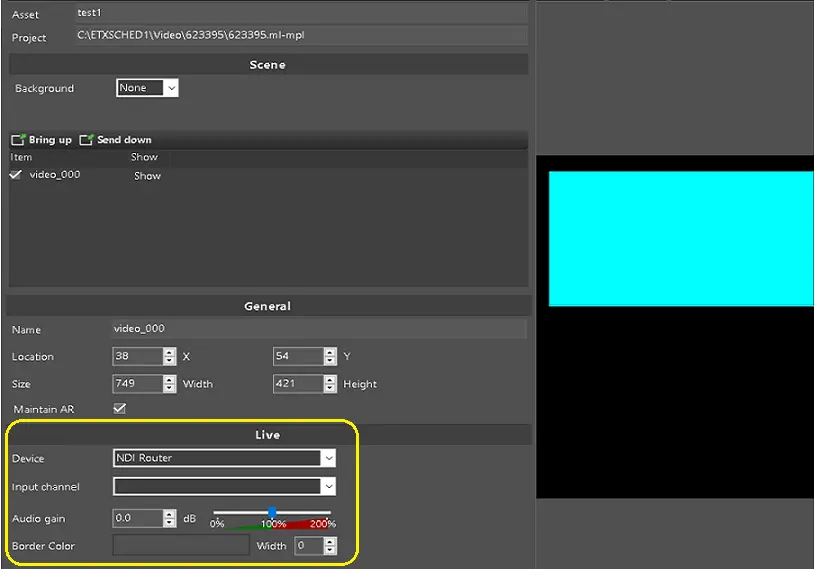

  Etx-g_graphics_scene_editor_live
  In Device source, you can select a local hardware device as the input source, e.g. Decklink SDI, rather than selecting NDI Router.


•

• Manage Image File
  Like Graphics Editor, you can manage or edit the images in Scenes Editor.

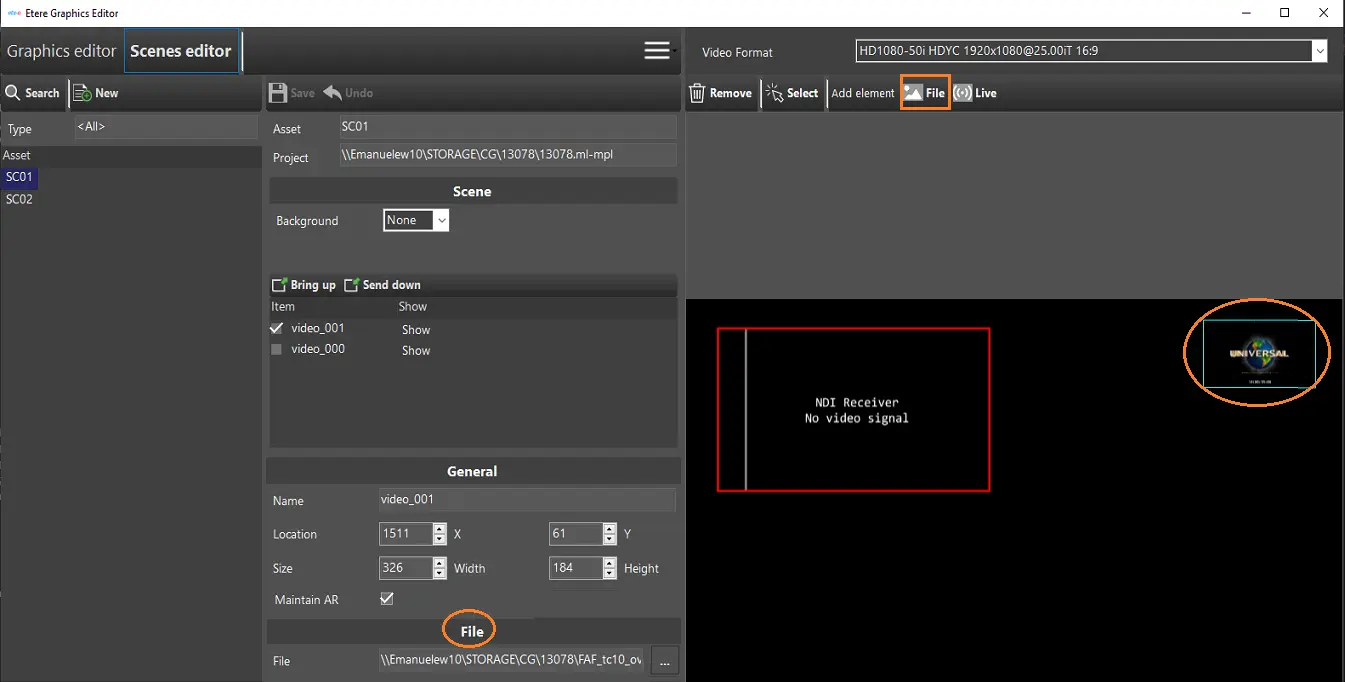

  Etx-g_scenes_editor_file
  In the File section, locate the image file stored in the local or network folder.
  In the right panel, click the button and edit the image file.


• Manage Thumbnail
• You can create and add a thumbnail to the asset in the Thumbnail panel.
• etx_scene_editor_thumb
• Use the<Acquire> button to get the thumbnail from the preview window.
• Use the <Clear> button to remove the selected thumbnail from the thumbnail window.
• Upon selecting the thumbnail, use the Save button in the top bar to save it and apply it to the asset, or click the Cancel button to undo the selected thumbnail.
