58.2.4 Load Cluster From Etere

Before loading the cluster from Etere, the SQL database must be configured to establish the connection.  The SQL configuration required to login as “sa” user using SQL server authentication.  After configuration, click on the <Connection Test> button to establish the connection to SQL database.

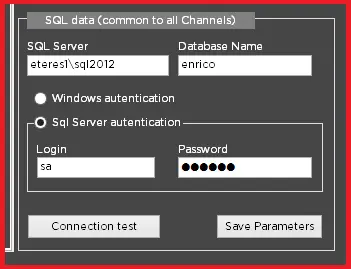

Censormx_connect_cluster

To load cluster from Etere, launch CensorMX from the workstation with CensorMX installed and click on the <Open Schedule> button to view clusters.

Censormx_open_schedule

As shown in the display above, the spots marked in red are without video file, you can select the cluster to load those spots by right-click on mouse and select <Load this cluster in the Censor>. Upon completion, the spots of cluster in red would be loaded into Playlist 3 (as shown below) and ready for schedule and timeline.

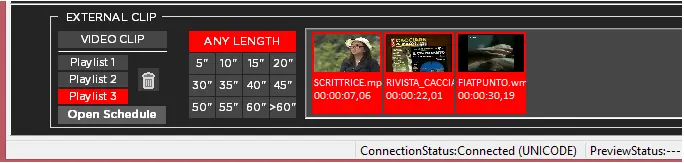

Censormx_load_schedule

The spots of the cluster would be transmitted into schedule and timeline.  If the transmission failed, you can revert the transmission status for the spots of the cluster by right-click on the spots and select the <Set cluster not transmitted> to set the cluster status as not transmitted.

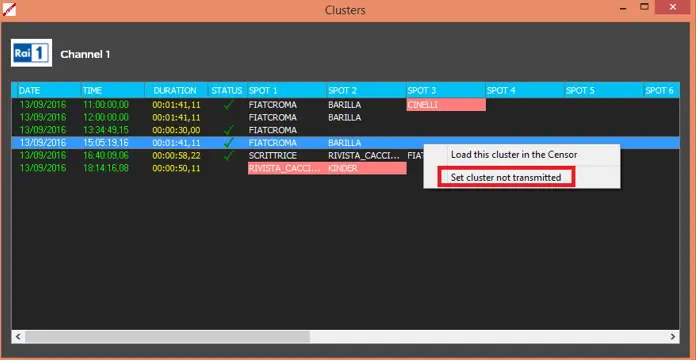

Censormx_set_schedule
