79.2.1.2 Configure MOS Devices

Upon configure Etere NCS Server, you can start add MOS devices to the tree node.
From the Nunzio Tree Menu, expand Mos gateway > Settings > MOS Devices to view the devices.

4011_mos_device_list_new_version

From the MOS Devices tree node, click the icon under Edit function to add a new device; the new device can be a prompter or graphics machine.  You can also use the shortcuts described in previous chapter when adding MOS device.

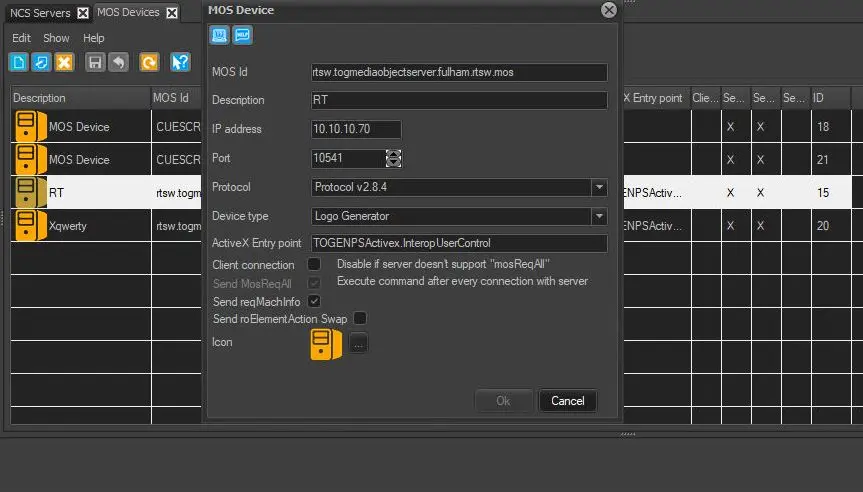

4012_MOS_device_new_version

Fulfill the following parameters to create a new MOS device:

• MOS Id: ID of the new MOS Device (from 3rd-party device).
• Description: Short description to identify the device.
• IP Address: The IP address of remote machine.
• Port: Specify the 3rd-party MOS port used for communication.
• Protocol: Select a MOS Protocol version supported by the 3rd-party device.
• Device Type: It can be Graphic Machine, Prompter or generic device.
• ActiveX Entry Point: Specify entry Point to access the ActiveX functions of the MOS device (from 3rd-party device).
• Client Connection:  Disable if server does not support “mosReqAll” command.
• Send MosReqAll: Execute the "MosReqAll" after every connection with NCS server.
• Send reqMachInfo: Executes Request Machine Information after every connection with NCS server.
• Send roElementAction Swap: The "roElementActionSwap" command executes SWAP operations on one or more elements in a playlist.
Upon completed, click <OK> to confirm settings and create the new device.
Command Legend:

• MosReqAll: Request All Object Data from MOS Server.
• reqMachInfo: Request Machine Information upon connection.
• roElementAction: The roElementAction command executes INSERT, REPLACE, MOVE, DELETE, and SWAP operations on one or more elements in a playlist. Replaces many messages of Mos protocol v2.6
